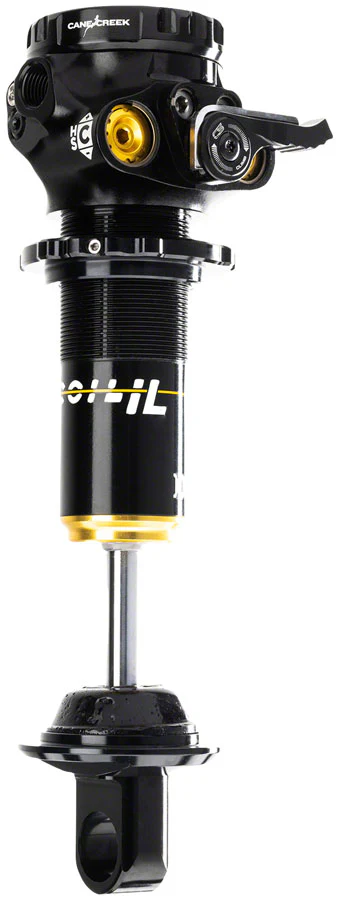

Cane Creek Coil IL Next Gen Rear Shock - 185 x 50mm Black Trunnion

The Coil IL Next Gen shock packs class-leading performance in a smaller and stronger package featuring a thicker inner damper tube for increased strength and a 17mm reduction in overall width on the valve body to increase fitment possibilities on tight frames. The Class-leading externally adjustable DB Twin Tube technology provides the widest range of 4-way damping adjustability on the market - designed to bring a new level of control to XC and Trail Bikes.

Nely added detents on the preload collar allow more precise preload tuning

4-Way independent adjustment - high and low speed compression high and low speed rebound

Twin-tube damping for unparalleled small bump compliance

Climb switch lessens low-speed compression and rebound damping at the same time for improved climbing traction

Hand assembled and Individually dyno-tested

Coil springs sold separately

Stroke (mm)	50
Metric	Yes
Lockout Switch	Climb Switch
Weight	280
Eyelet Diameter (mm)	12.7
External Adjustments	Coil Preload
Positive Spring	Coil
Eye to eye length (mm)	185
