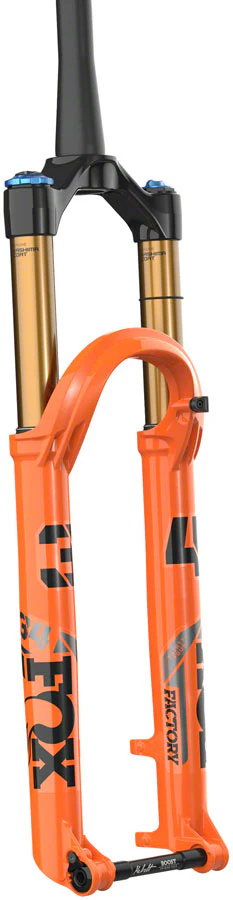

FOX 34 Factory Suspension Fork - 29" 130 mm 15 x 110 mm Kabolt 44mm Offset GRIP X Damper Shiny Orange

A trail fork not to be underestimated the venerable 34 is more capable than ever before. With damping optimized for trail the 34 excels at all-mountain descending while keeping the weight low. Trail riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. The GRIP X damper exudes exemplary descent performance refined for less weight easier set up and an easy access firm mode for pedaling efficiency.

GRIP X damper exudes exemplary descent performance refined for less weight easier set up and an easy access firm mode for pedaling efficiency

The lower leg arch design pairs perfectly with modern trail bikes where head tube profiles have grown larger and fork offsets shorter

The 34’s arch juts forward to provide ample headtube clearance at full compression and the lower leg shape optimizes stiffness with the absolute minimal amount of material

Lower leg bypass channel helps alleviate air pressure as the fork compresses by dramatically increasing air volume within the lower legs and reducing unintended pressure ramping

Lower leg bath oil is circulated to the upper reaches of the lower legs continuously lubricating inner seals and bushings

Fitted with the proven and reliable FLOAT EVOL air spring

Kashima Coating on upper tubes for added durability

Steerer Type	Tapered
Lockout Switch	Crown
Brake Type	Post Mount 180
Negative Spring	Air
Travel (mm)	130
Offset	44
Axle to Crown Length	544
Front Axle	15mm Thru x 110mm
Maximum Tire Width	63
S.H.I.S. Stem Clamp Diameter	28.6
Color	Shiny Orange
Crown Race	40
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Orange
Positive Spring	Air
keyword search	FOX MY25
Stanchion Diameter	34
Steerer Tube Length (mm)	264
