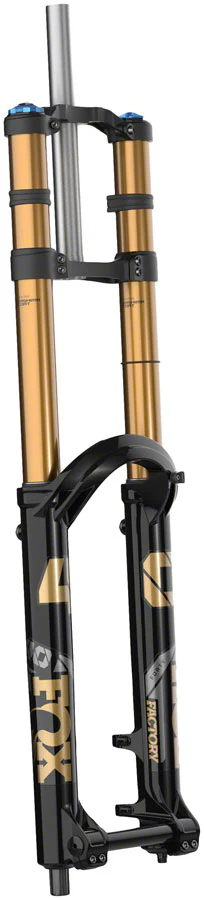

FOX 40 Factory Suspension Fork - 29" 203 mm 20TA x 110 mm 52mm Offset GRIP X2 Damper

Target locked on the top step of the podium and developed in the crucible of World Cup competition the 40 is the definitive DH race fork. FOX's GRIP X2 is the most tunable supportive and smoothest descent-focused damper they've created ensuring the 40 stays planted in the hot seat

GRIP X2 is the most tunable supportive and smoothest descent-focused damper FOX has created

Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground cornering with increased traction and experience reduced fatigue

Lower leg bleeders allow atmospheric pressure equalization at the push of a button and the bypass channels increase volume to alleviate pressure ramping as the fork moves through its travel for better fork performance by increasing small bump sensitivity and responsiveness

The lower leg arch design of the 40 maximizes strength and steering stiffness for downhill performance while adding no unnecessary weight

Fitted with the proven and reliable FLOAT EVOL air spring

Floating thru axle allows perfect chassis alignment and reduces unwanted friction between the upper and lower fork legs providing much smoother suspension movement throughout the entire range of travel

Kashima Coating on upper tubes for added durability

Steerer Type	Straight
Lockout Switch	Crown
Brake Type	Post Mount 203
Negative Spring	Air
Travel (mm)	203
Offset	52
Axle to Crown Length	601.9
Front Axle	20mm Thru x 110mm Boost
Maximum Tire Width	63
S.H.I.S. Stem Clamp Diameter	28.6

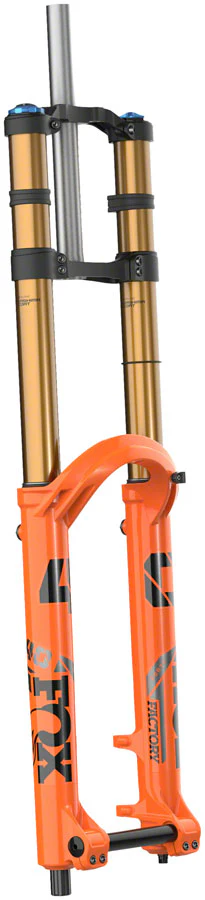

Color	Shiny Black, Shiny Orange
Crown Race	30
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
keyword search	FOX MY25
Stanchion Diameter	40
Steerer Tube Length (mm)	272
