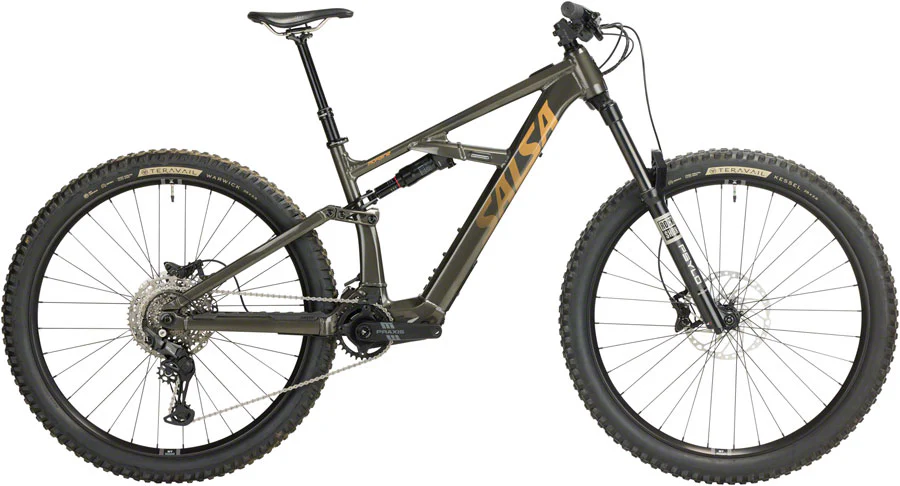

Salsa Moraine Cues 10 Ebike - 29", Aluminum, Coffee Black

Moraine is Salsa's light electric mountain bike. It adds range route options and capability to every trail ride with a Fazua Ride 60 drive system and 145 mm of Split Pivot suspension. Moraine's geometry feels right at home on backcountry lines and buffed-out flow trails. Add Salsa’s on-bike cargo features and Moraine makes riding to the trailhead sessioning lines and taking second laps feel like second nature.

6061-T6 aluminum frame

145mm of Split Pivot suspension to maximize traction and efficiency

Split Pivot + frame design philosophy allows riders to swap between travel classes

Fazua Ride 60 class 1 mid-drive motor (20 mph/32 kph max assist)

60Nm max torque

430Wh Fazua Energy 430 removable internal battery

Compatible with 210 Wh Fazua Energy range-extender battery (sold separately)

Fazua LED Hub on top tube for battery status and riding modes

Fazua Ring Control for easy ride mode selection

Internal cable and hose routing

12 x 148mm Boost rear spacing

SRAM UDH compatible

Accommodates up to 29 x 2.5" or 27.5 x 2.7" tires

Integrated tool and tube strap location in front triangle

Pump mount location

All sizes fit one bottle or Fazua Energy range-extender battery

Frame protection on downtube main pivot seatstay and chainstay

Rear Axle	12mm Thru x 148mm
Throttle	No
TT (Effective)	590, 612, 634, 656
Brake Type	Disc
Removable Battery	Removable for Service
Battery Power (Wh)	430
Battery Power (V)	43.2
Battery Power (Ah)	10
Fork Type	Suspension
Lights Included	No
Frame Material	Aluminum
Frame Type	Suspension
Front Axle	15mm Thru x 110mm
Drive Type	Mid-Drive
Ebike Class	1
Charger Included	Yes
Color	Coffee Black
Battery	Li-Ion
Assist Levels	3
Range Estimate (Mi)	40
Motor Torque (Nm)	60
Charge Time (h)	3.5
Mfg Size	Large, Medium, Small, X-Large
Assist Speed (Mph)	20
Walk Assist	Yes
Platform	Moraine
Wheel Size	29"
Defined Color	Black
