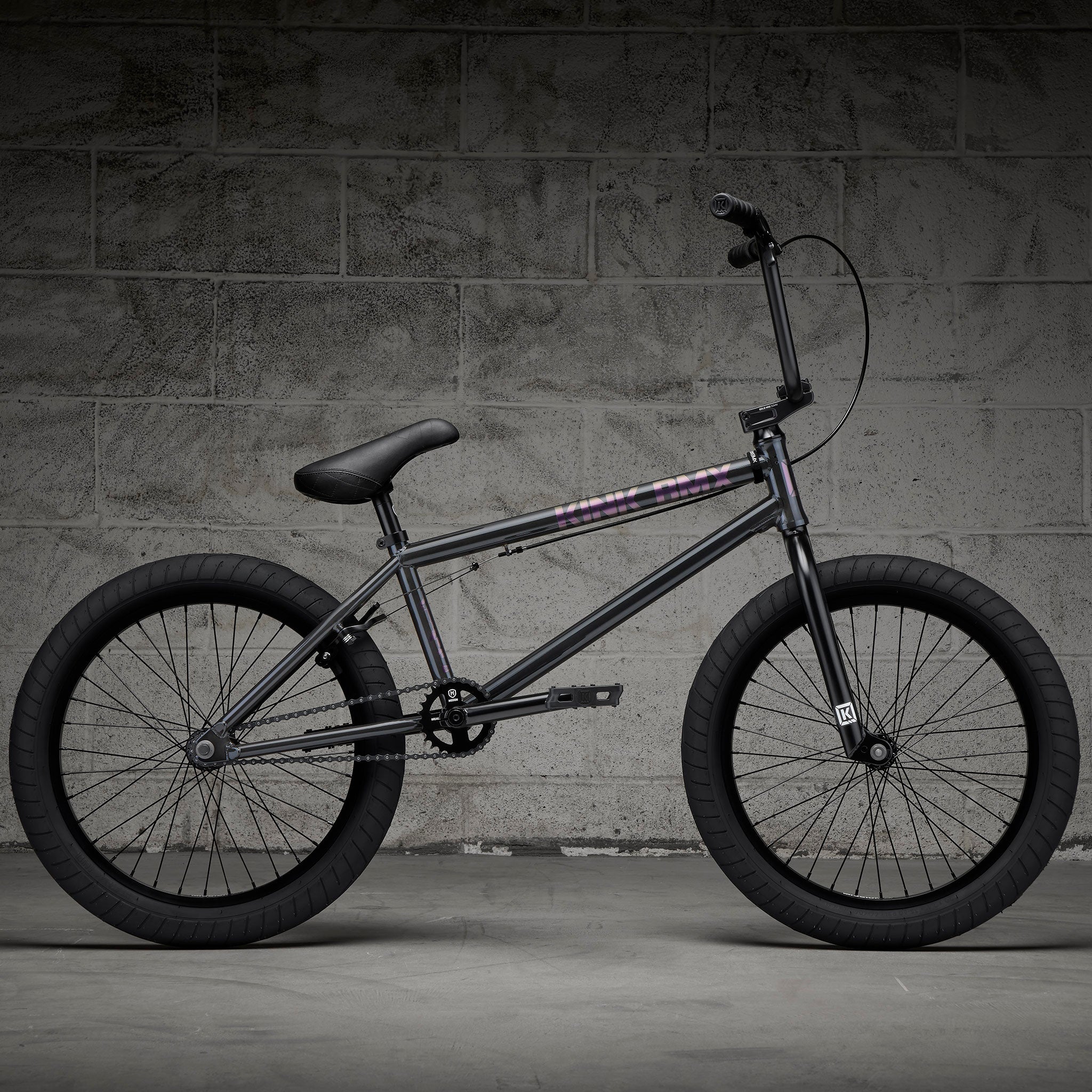

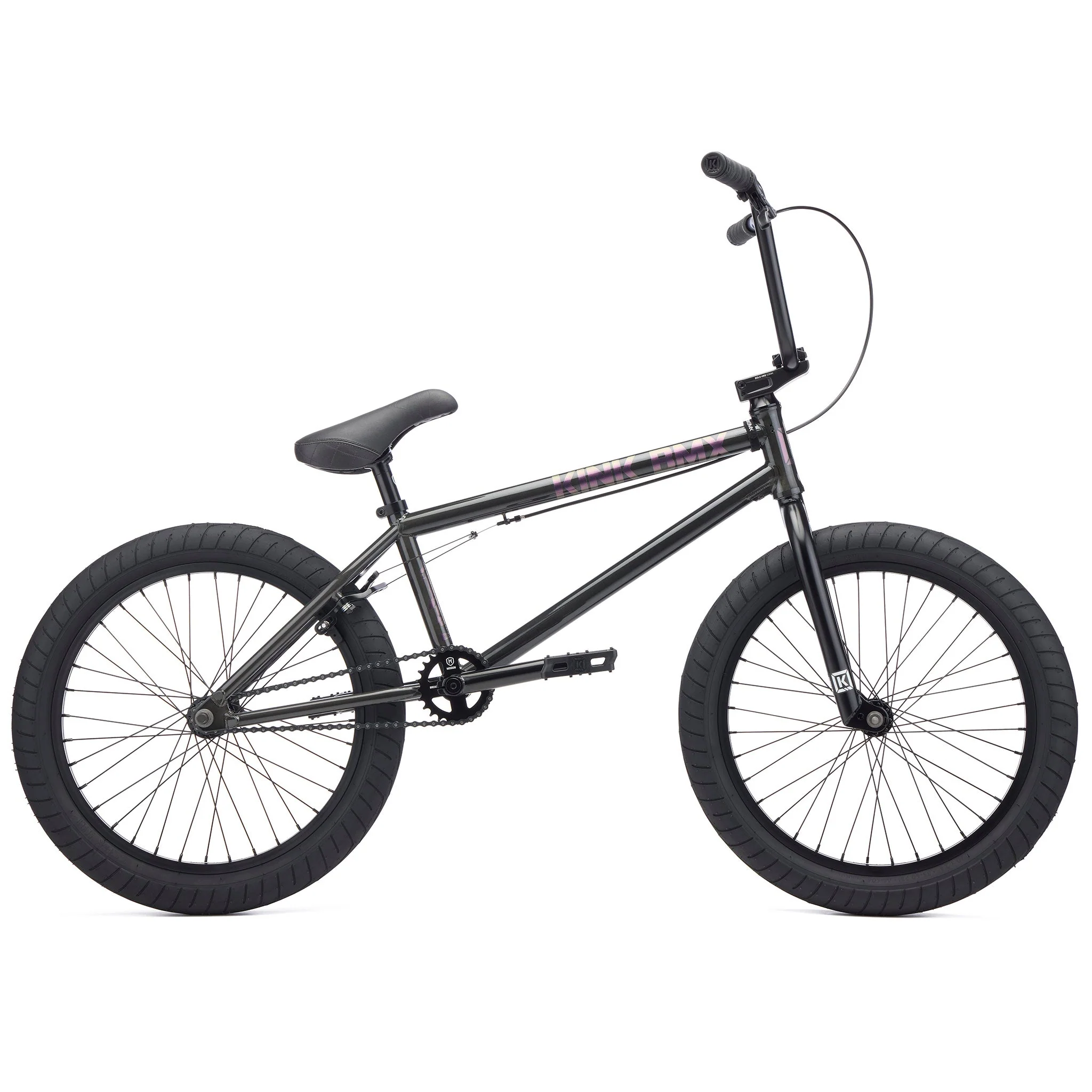

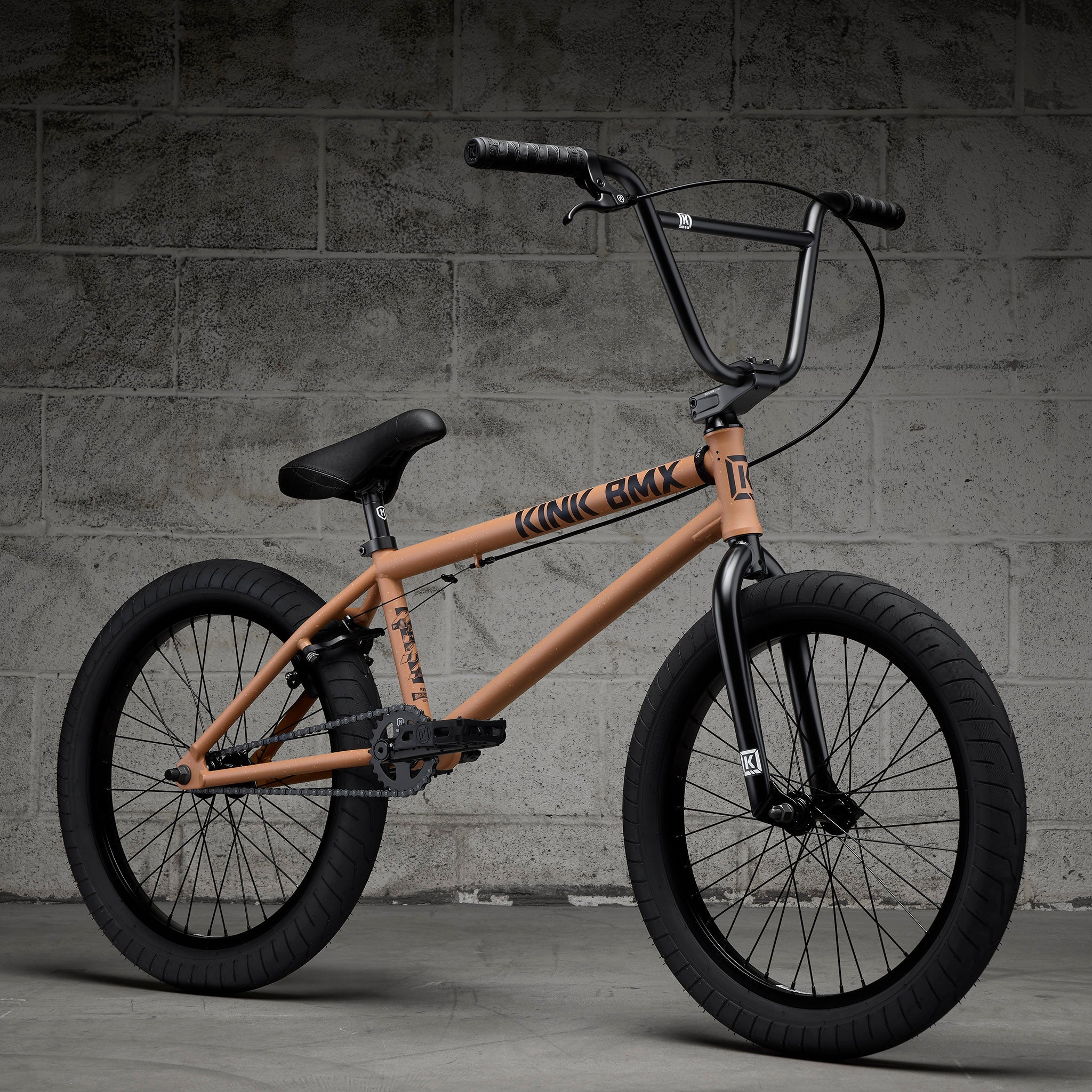

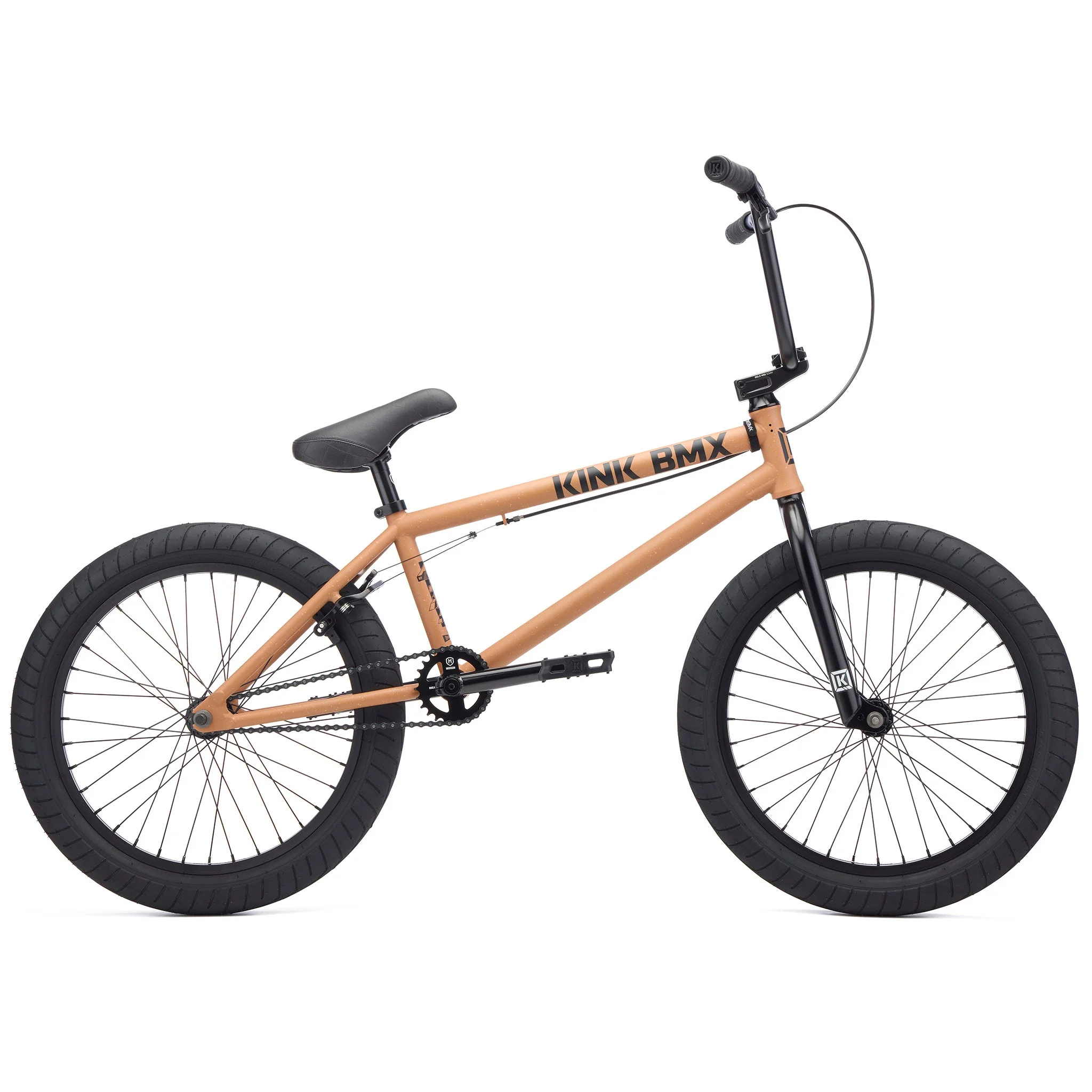

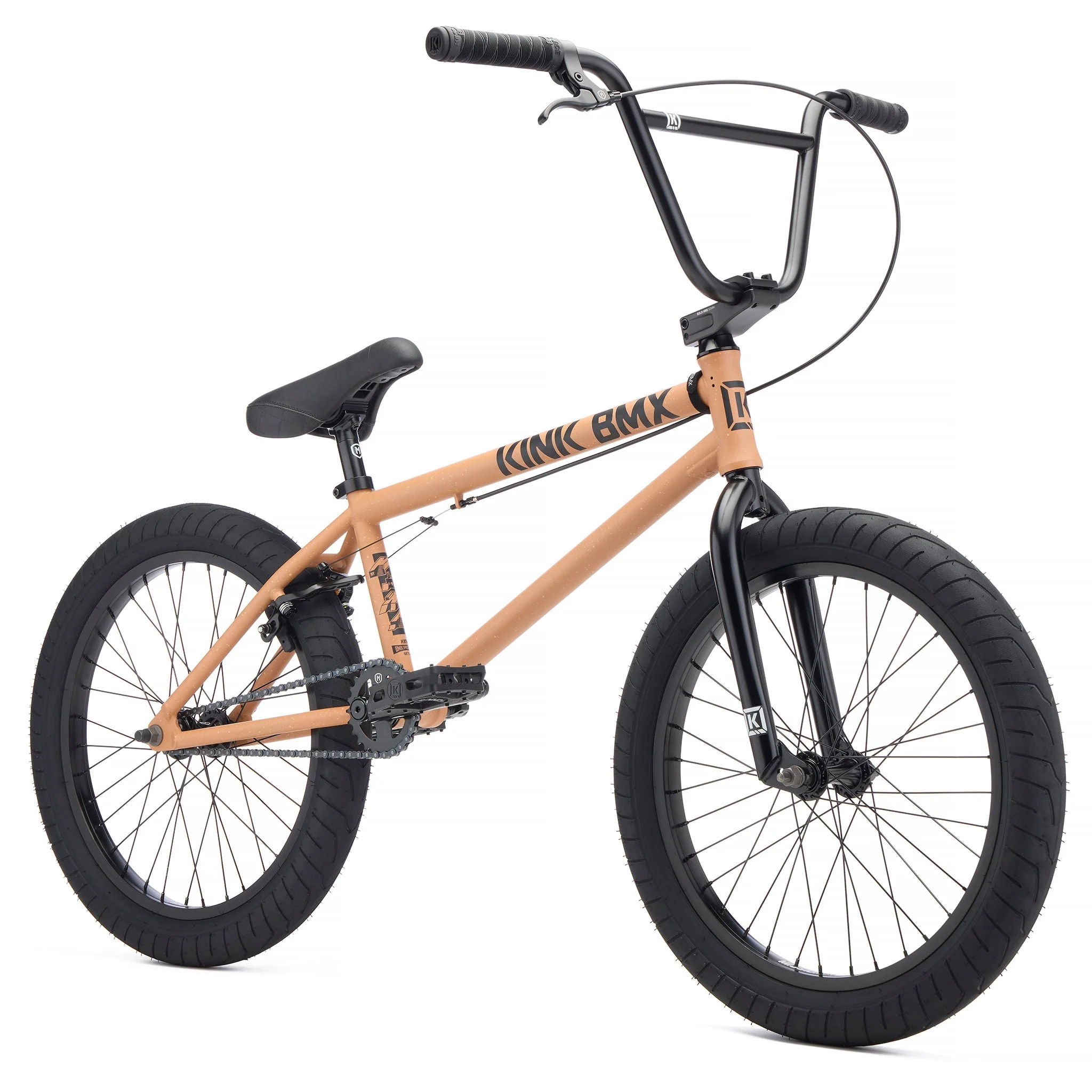

Setup 2027

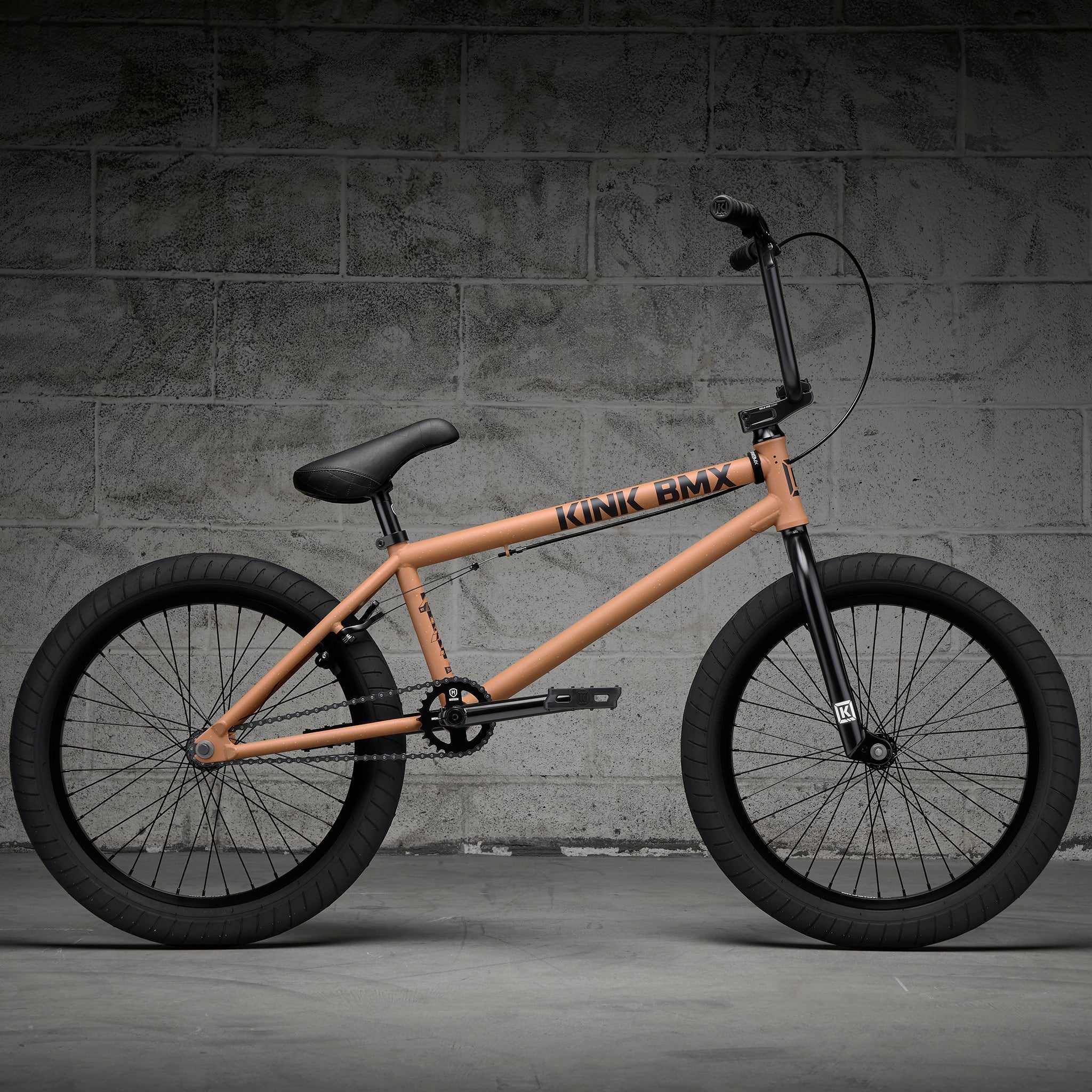

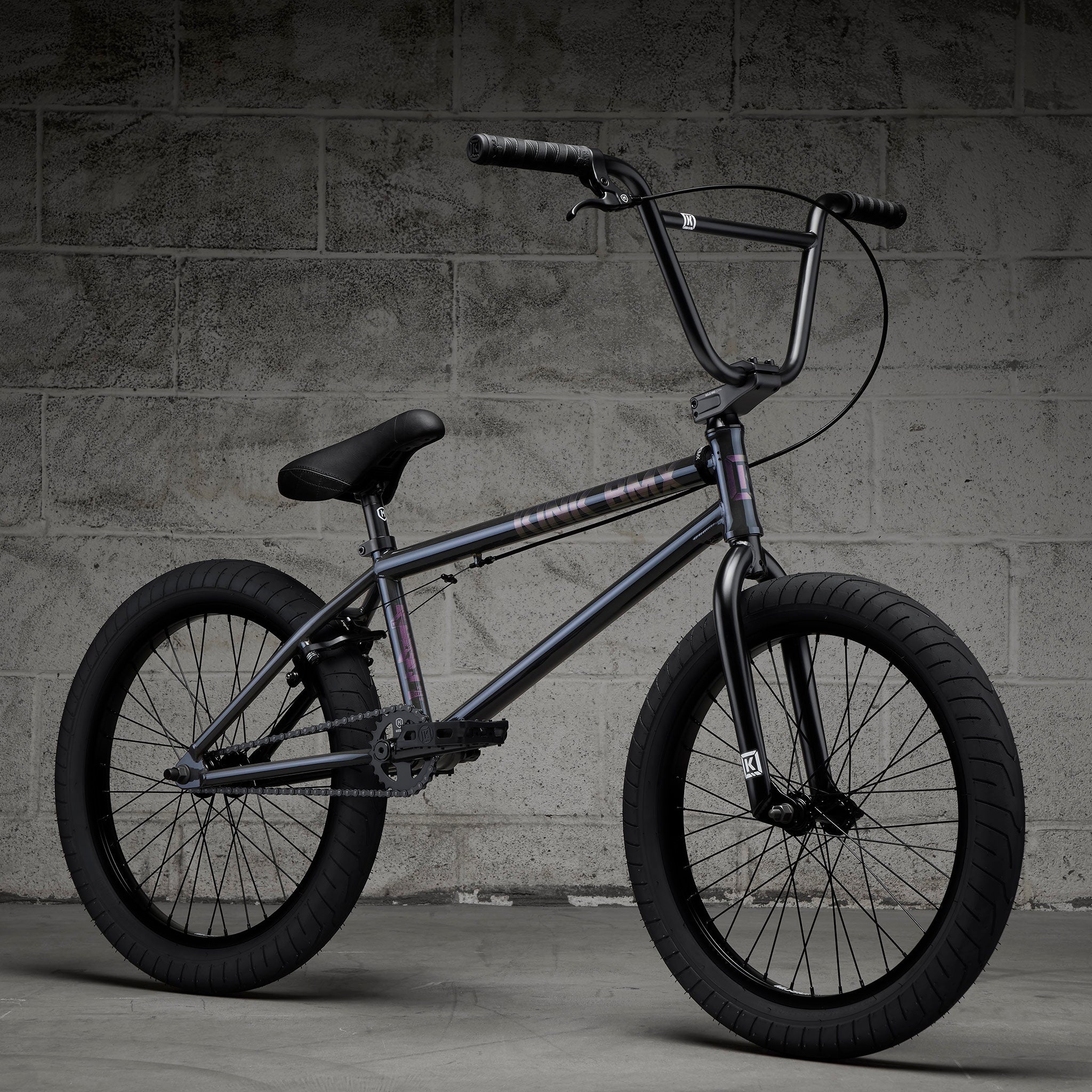

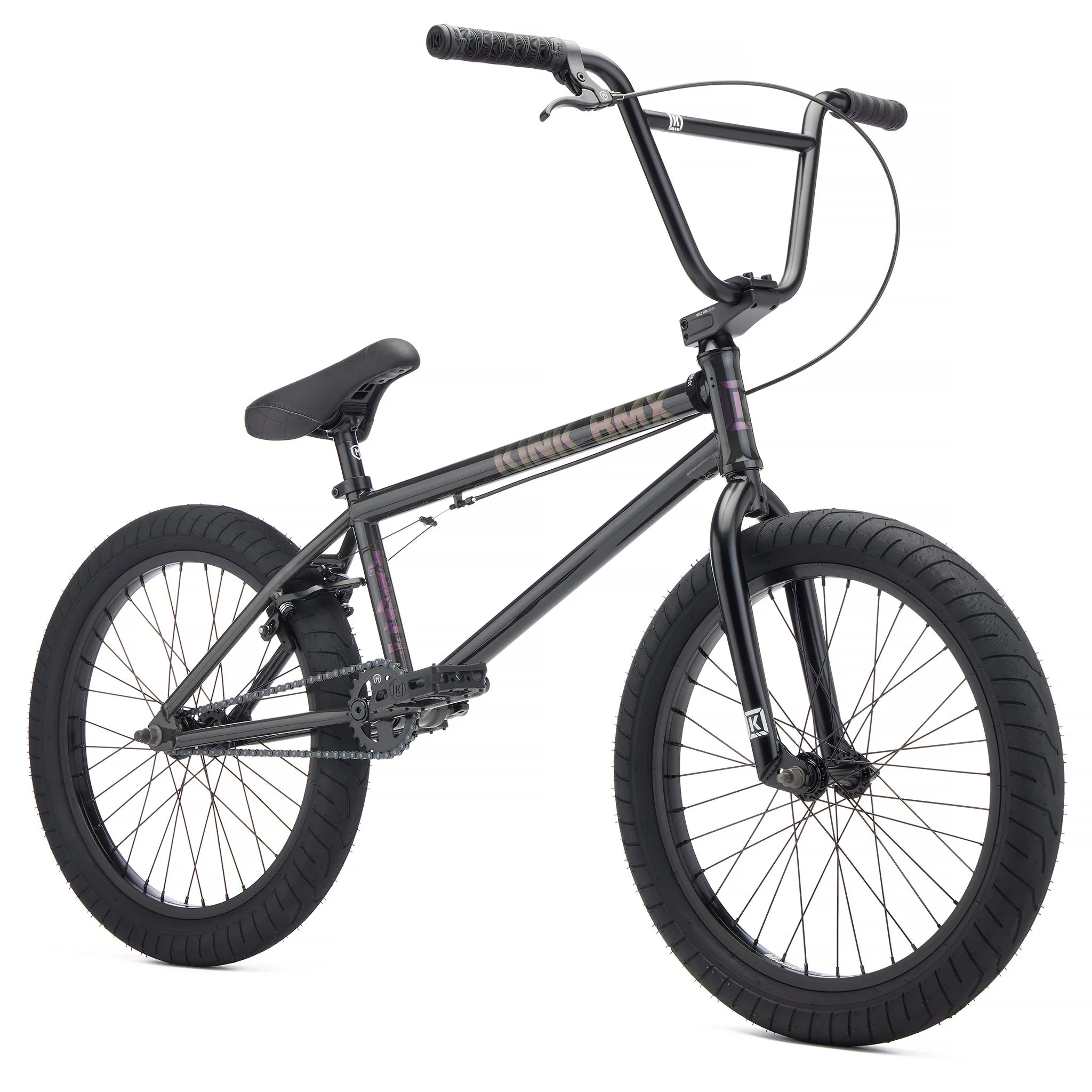

The all-new Kink Setup is a super versatile bike ready to handle more serious riding. This model features a 4130 chromoly frame front triangle, forks, and handlebars, improving the overall strength and longevity of the bike. Additional upgrades, such as the Stealth seat system, offer more adjustability and modern compatibility. Its moderate-to-modern geometry is also great for all types of riding. The Setup is available in Iridescent Black and Oxide Orange colorways and is also offered in an XL size for taller riders.

Geometry

Toptube Length: 20.5"
Chainstay Length: 13.25"
Headtube Angle: 75°
Seattube Angle: 71°
Standover Height: 9"
Bottom Bracket Height: 11.6"
Fork Offset: 30mm

Tech Specs

Frame: Kink Setup 4130 Chromoly Front Triangle
Fork: Kink Circuit 4130 Chromoly Steerer, Tapered Fork Legs
Bars: Kink T900 9" 100% 4130 Chromoly
Grips: Kink Ace Flangeless
Stem: Kink Bold HRD 50mm
Headset: Mission Sealed Integrated (41.8 x 45)
Brake Lever: Mission Token
Brake Cable: Mission L3 Linear
Brakes: Mission Cease V2
Cranks: Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline
Bottom Bracket: Sealed Mid 19mm
Pedals: Kink Hemlock
Chain: Mission 410
Sprocket: Mission Breach 25T
Seat: Kink Plymouth Stealth
Seat Post: Mission Stealth
Seat Clamp: Mission Slim Clamp
Front Hub: Mission Covert Unsealed 3/8″ Axle
Rear Hub: Mission Engage Sealed Cassette 14mm
Driver: 9T
Rims: Mission X7
Tires: Kink Sever 2.4"
Pegs: N/A
Weight: 26 lb 14 oz

Select Color

From $175.00

Original: $499.99

Setup 2027—

$499.99

$175.00
