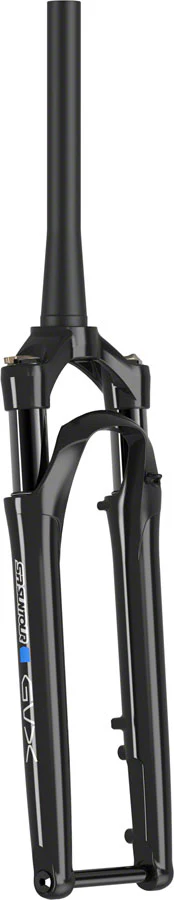

SR Suntour GVX LO R Suspension Fork - 700c

Performance is rooted in durability and reliability. Whether you’re exploring endless gravel roads racing on the ever-more technical Cyclocross courses or building a sleek new e-Gravel bike the GVX suspension gravel fork is ready for the gravel experience. 32mm stanchions with travel and damping adjustments create traction comfort and versatility in a Gravel fork that puts the GVX in a class of its own. The versatility designed into the GVX is wide reaching accommodating a variety of tire sizes riding styles and conditions.

Hydraulic Lockout

Air spring Rebound adjustable

32mm A7000 butted black anodized stanchion with Lower magnesium monocoque design

Flat direct mount brake

50mm recommended maximum tire width

Integrated fender included

E-bike ready

Steerer Type	Tapered
Color	Gloss Black
Lockout Switch	Crown
Brake Type	Post Mount 160
Crown Race	40
Negative Spring	Coil
Travel (mm)	40, 50
Wheel Size	700c
Offset	45, 46
Designed for ebike	Yes
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
Axle to Crown Length	436, 446
Front Axle	12mm Thru x 100mm
Stanchion Diameter	32
Maximum Tire Width	50
S.H.I.S. Stem Clamp Diameter	28.6
Steerer Tube Length (mm)	272
