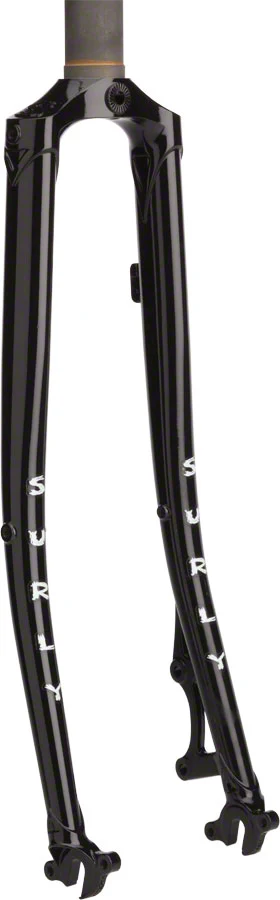

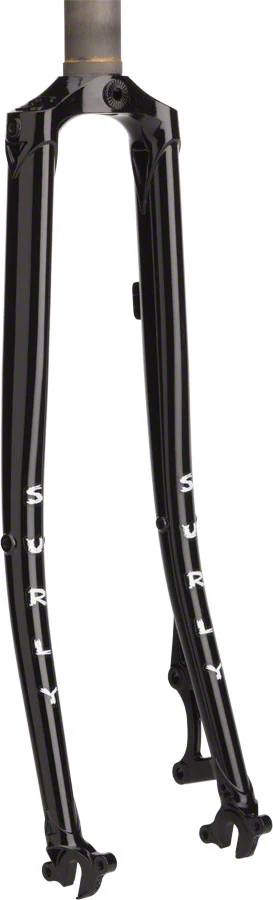

Surly Disc Trucker Fork

Built to accommodate disc brakes the Disc Trucker Quick-Release Fork is compatible with all first-generation Disc Truckers (those with quick-release dropouts). Made of Chromoly steel it provides options for mounting racks fenders and whatever gear you need to haul. Fear not the loaded descent.

100% Chromoly steel construction curved blades powder coated

Extensive mounting options with threaded eyelets in four locations: double eyelet dropouts mid-blade and a pair drilled into the fork crown

26" has clearance for a 2.0" tire

700c has clearance for a 50mm tire

Note: The Disc Trucker QR Fork is compatible with all first-generation Disc Trucker models (those featuring rear QR dropouts) — released in 2019 and prior.

Steerer Type	Straight
Color	Black
Brake Mount (Fork)	IS Disc Brake 160
Crown Race	30
Weight	1043, 955
Wheel Size	26", 700c
Offset	45
Material	Steel
Defined Color List	Black
Defined Color	Black
Maximum Tire Clearance (Fork)	2.0", 50mm
Axle to Crown Length	376, 390
Front Axle	9mm x 100mm
S.H.I.S. Stem Clamp Diameter	28.6
Steerer Tube Length (mm)	350, 400
