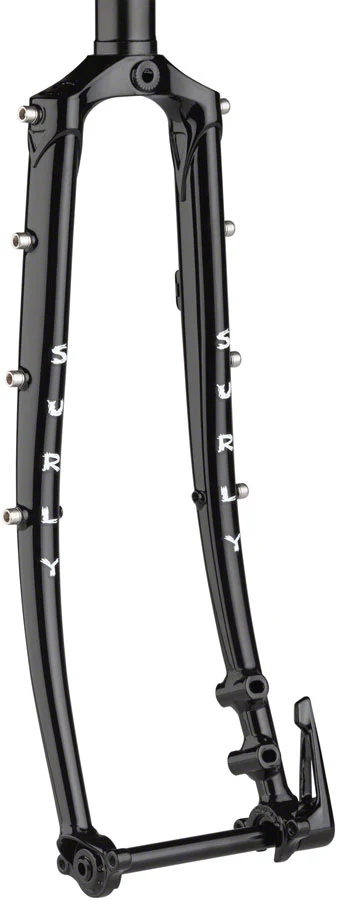

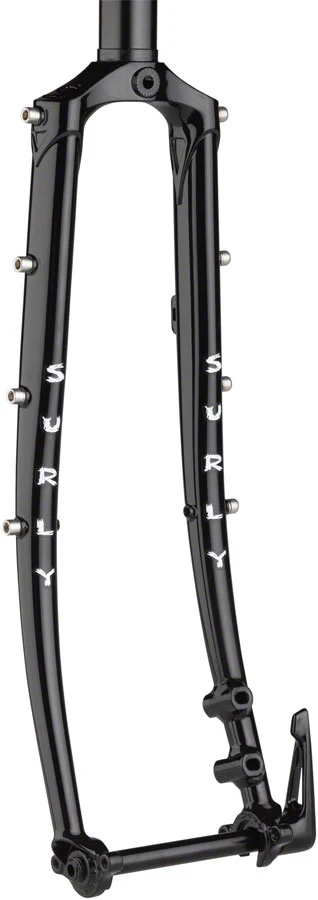

Surly Disc Trucker Fork

Equipped to make touring the wide world’s paved roads a little more comfortable the Disc Trucker Thru-Axle Fork has three-pack mounts on each blade to give you space for racks fenders and additional cargo solutions. Available in 26˝ and 700c wheel sizes it offers dynamo routing a 1-1/8˝ threadless steerer tube and compatibility with 12mm captured thru-axles and flat-mount disc brakes.

100% Chromoly steel construction curved blades powder coated

Versatile three-pack mounts on the fork blades plus routing for Dynamo hubs

Completely redesigned fork ends to accommodate 12mm captured thru-axles and flat-mount disc brakes

Clearance for a 26 x 2.1" tire with or without fenders or 700c x 47mm with or without fenders

Axle-to-crown height: 376mm for 26" 390mm for 700c

Note: The Disc Trucker Thru-Axle Fork is compatible with the second-generation Disc Trucker model first released in 2020 (frames featuring rear thru-axle dropouts).

Steerer Type	Straight
Max Rotor Size (Fork)	160
Color	Black
Brake Mount (Fork)	Flat Mount 160
Crown Race	30
Wheel Size	26", 700c
Offset	45
Material	Steel
Defined Color	Black
Maximum Tire Clearance (Fork)	26x2.1, 700x50
Axle to Crown Length	376, 390
Front Axle	12mm Thru x 100mm
Front Hub Spacing (mm)	100
S.H.I.S. Stem Clamp Diameter	28.6
Steerer Tube Length (mm)	350, 400
