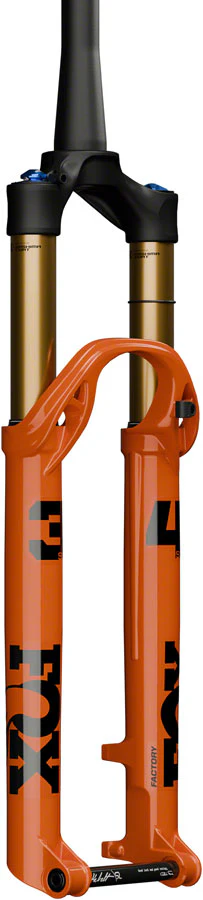

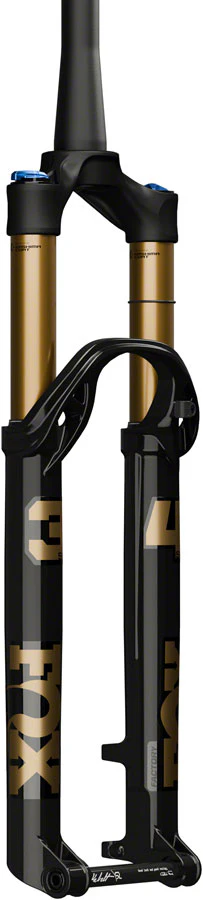

FOX 34 SL Factory Suspension Fork - 29"

XC courses are more technical than ever with the latest longer-travel XC bikes more than capable. With a stout full-width stance increased travel and tire clearance and svelte sub-1500g weight the new 34 SL Factory suspension fork is built to exceed the demands of modern XC and downcountry. Features Kashima Coating on upper tubes for added smoothness and durability

Full-width 34mm chassis with aggressive generative design-aided arch and crown for 17% increase in stiffness and 10mm increase in travel over 34 SC at only 3% weight increase

20mm increased bushing overlap for reduced friction and greater stiffness with no increase in axle-to-crown length (compared to 34 SC)

Longer air spring than 34 SC with larger negative volume mirrors 34 LT’s supple initial stroke and 34 SC’s supportive mid and end stroke

Double-butted damper side stanchion for weight savings

Lower Leg Bypass Channels relocated 90° inboard for improved bushing loading and reduced dynamic friction

Steerer Type	Tapered
Lockout Switch	Crown, Remote
Brake Type	Post Mount 180
Negative Spring	Air
Travel (mm)	120, 130
Offset	44
Axle to Crown Length	540.5
Front Axle	15mm Thru x 110mm
Maximum Tire Width	63.5
S.H.I.S. Stem Clamp Diameter	28.6
Color	Shiny Black, Shiny Orange
Crown Race	40
Wheel Size	29"
External Adjustments	Rebound Damping
Defined Color	Black, Orange
Positive Spring	Air
keyword search	FOX Model Year 26 , FOX MY26
Stanchion Diameter	34
